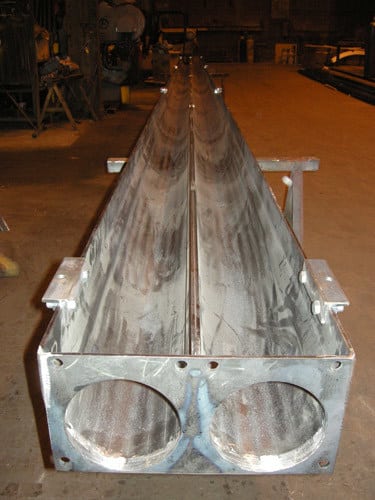

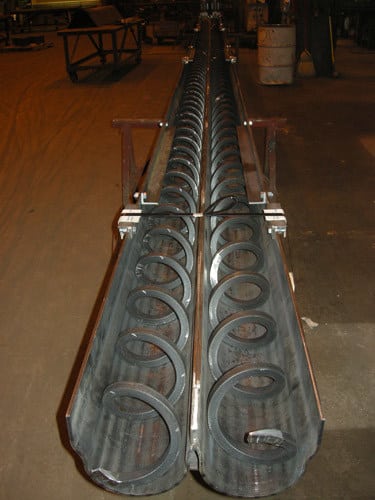

The project highlighted here represents a complete turnkey solution for a manufacturer of heavy equipment. Reinke & Schomann, Inc. was contracted to perform all of the work highlighted here, designing and developing twin centerless screw conveyors for installation on a large planer in a heavy equipment machine shop. Utilizing our highly developed machining techniques, ASTM A36, ASTM A572 grade 50 steel was fabricated to the precise configurations while holding a tight ±0.062” tolerance. The conveyor featured a movable baffle for the separation of two types of metals. The unit was assembled, and the integrity and accuracy of the drives and screws were tested with dry runs.
The completed part was 35’ in length, and 2 units were fabricated and shipped to the customer in Illinois after a 10 week turnaround time. At Reinke & Schomann, we are experienced in the creation of screw conveyors for a number of industrial applications using a variety of materials. For more details about this twin centerless screw conveyor fabrication project or any other manufacturing capabilities available, please see the table below or contact us directly.
Showcased Projects
Reinke & Schomann, Inc. compiled a few selected project examples which demonstrate our capabilities and services. Click on the links below to view more information about the project.
Design & Development of Twin Centerless Screw Conveyors Project Highlights
- Product Description
- This part is installed on a large planer in a heavy equipment machine shop
- Capabilities Applied/Processes
-
- Primary:
Engineering Services- Design/Development
Fabricating
Machining - Secondary:
Assembly
- Primary:
- Overall Part Dimensions
- Length: 35′
- Tightest Tolerances
- (+/-) 0.062″
- Material
- ASTM A 36; ASTM A 572 Gr50
- Additional Facts
- Movable baffle to segregate two different types of metal chips
- In process testing/inspection performed
- Dry run to test drives and screws
- Industry for Use
- Heavy Machining
- Quantity
- 2
- Delivery/Turnaround Time
- 10 weeks
- Delivery Location
- Illinois
- Standards Met
- Customer Specifications, 2D CAD Drawing
- Product Name
- Twin Centerless Screw Conveyor
